Machines with a simple and robust design, safe and easy to use.
Self-supporting structure made of cast anodised aluminium, bright, hygienic and anti-corrosive.
Complete with AISI 304 stainless steel worktop, meat pusher and portioning machine.
24V controls with safety microswitch on the door, redundant control unit and motor brake (CE).
Maximum simplicity and precision in both horizontal and vertical adjustment of the upper pulley.
Maximum adherence of the blade to the pulley thanks to the semi-curved pulleys and perfect adjustment.
Sealed bearings on upper pulley.
Easy to clean thanks to 2 special design features:
-All electrical parts are located under the worktop in a special IP 65 insulated box.
– By unscrewing two knobs it is possible to remove the blade, upper pulley and pulley support, thus creating a clutter-free surface.
Powerful 4-pole asynchronous and ventilated motors protected with oil seals.
Use hardened 16 mm blades for cutting bone, frozen and fresh.
Technical features
BLADE LENGTH
1550 mm
SINGLEPHASE MOTOR
Hp 1,5 - 1,1 kW / rpm 1400
THREEPHASE MOTOR
Hp 2 - 1,5 kW / rpm 1400
PULLEY
mm 210
WORKING SURFACE
mm 415x430

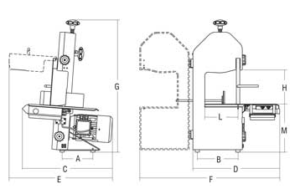

A
mm 180
B
mm 238
C
mm 530
D
mm 510
E
mm 606
F
mm 822
G
mm 778
H
mm 215
L
mm 195
M
mm 269
NET WEIGHT
kg 32
PACKING DIMENSIONS
mm 720x570x1200
